Array Mapping

Created by Reachware Support, Modified on Wed, 18 Mar at 10:49 AM by Reachware Support

Arrays require special handling in data mapping. This article explains how to work with arrays in Reachware Studio and why they need different techniques than standard field mapping.

Understanding Array Structure

An array is a list of items grouped together. There are two types:

Simple Array

Contains one or more values of the same type (integers, strings, etc.):

["Apple", "Banana", "Orange"]

Array of Objects

Contains collections with multiple properties:

[
{"name": "Laptop", "price": 1000, "qty": 2},
{"name": "Mouse", "price": 25, "qty": 5}
]

Arrays use square brackets [] with numbers to access specific elements. Index starts at 0.

Array Notation and Indexing

Notation	Meaning
[0]	First element
[1]	Second element
[2]	Third element
items[]	First item (empty brackets default to first element)
items[].name	Name property from the first item

Source: ["Apple", "Banana", "Orange"]
Mapping: items[]
Result: "Apple"

Understanding Array Mapping

In standard data mapping, you connect one field to one field:

Source: customer_name → Destination: name

Arrays are different because they contain multiple items:

Source: items[] → Contains 5 products
Destination: line_items[] → Needs 5 products

Example:

An order contains three products: Laptop, Mouse, and Keyboard.

The goal:

Is to create an invoice contains all products in the accounting system.

✕ Output without array mapping
{
"line_item_name": "Laptop",
"line_item_quantity": 1,
"line_item_price": 1000
}
Only the first item (Laptop) is sent. Mouse and Keyboard are omitted. Standard mapping handles single fields, not arrays.
✓ Output with array mapping
{
"line_items": [
{ "name": "Laptop", "quantity": 1, "price": 1000 },
{ "name": "Mouse", "quantity": 2, "price": 25 },
{ "name": "Keyboard", "quantity": 1, "price": 75 }
]
}
All items are included in the invoice. Array mapping ensures the entire product list is processed and transferred correctly.

loopOverItems Handler

The loopOverItems handler processes each item within a list or array mapping from the source to the destination, ensuring all items are handled during flow execution.

Example:

The data from the source step:

 {
    "items": [
      { "name": "Laptop", "quantity": 1, "price": 1000 },   // First product
      { "name": "Mouse", "quantity": 2, "price": 25  },    // Second product
      { "name": "Keyboard", "quantity": 1, "price": 75  }  // Third product
    ]
  }


The handler in the mapping to the destination.

 Handler: "loopOverItems(source.items[].name)" // Extracts all product names

The output of the destination after applying the loopOverItems handler.

Distenation: ["Laptop", "Mouse", "Keyboard"]  // Resulting array of names

For more details, go to Array Handlers →

Iterator & Aggregator

For advanced array processing beyond simple mapping, use Iterator and Aggregator logic processors to apply complex transformations to each item, iterate on each item using iterator, filtering items based on specific conditions. perform calculations on each item separately, combine results after processing using aggregator.

For more details, go to Advanced Mapping →

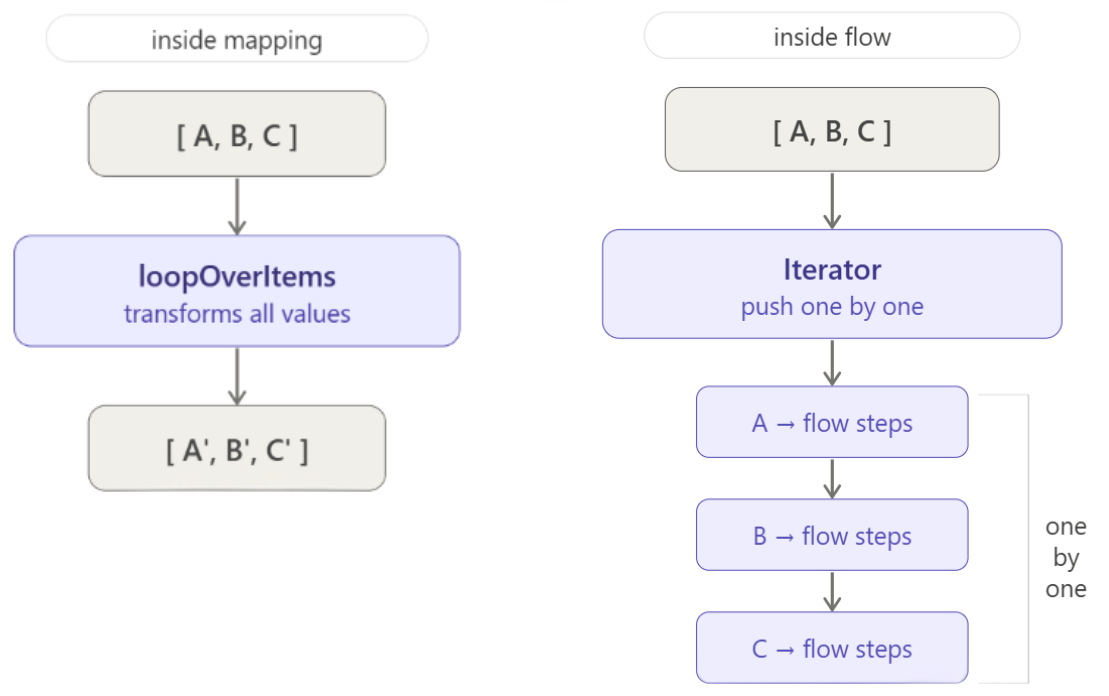

Iterator vs loopOverItems

Aspect	loopOverItems	Iterator
Defintion	Handler used in mapping	Logic Processor used in the flow
Role	Processes array values during mapping and converts them into destination fields	Pushes each object separately through the flow steps
Complexity	Simple direct transformation	Advanced includes logic and processing per item
Result	Entire array is transformed during mapping	Each item follows its own execution path in the flow
