Math Handlers

Created by Reachware Support, Modified on Wed, 18 Mar at 12:36 AM by Reachware Support

Math Handlers in Reachware Studio are predefined functions used to perform calculations, round numbers, and format numerical values during the mapping process. These handlers enable you to perform mathematical operations without writing custom code.

Accessing Math Handlers

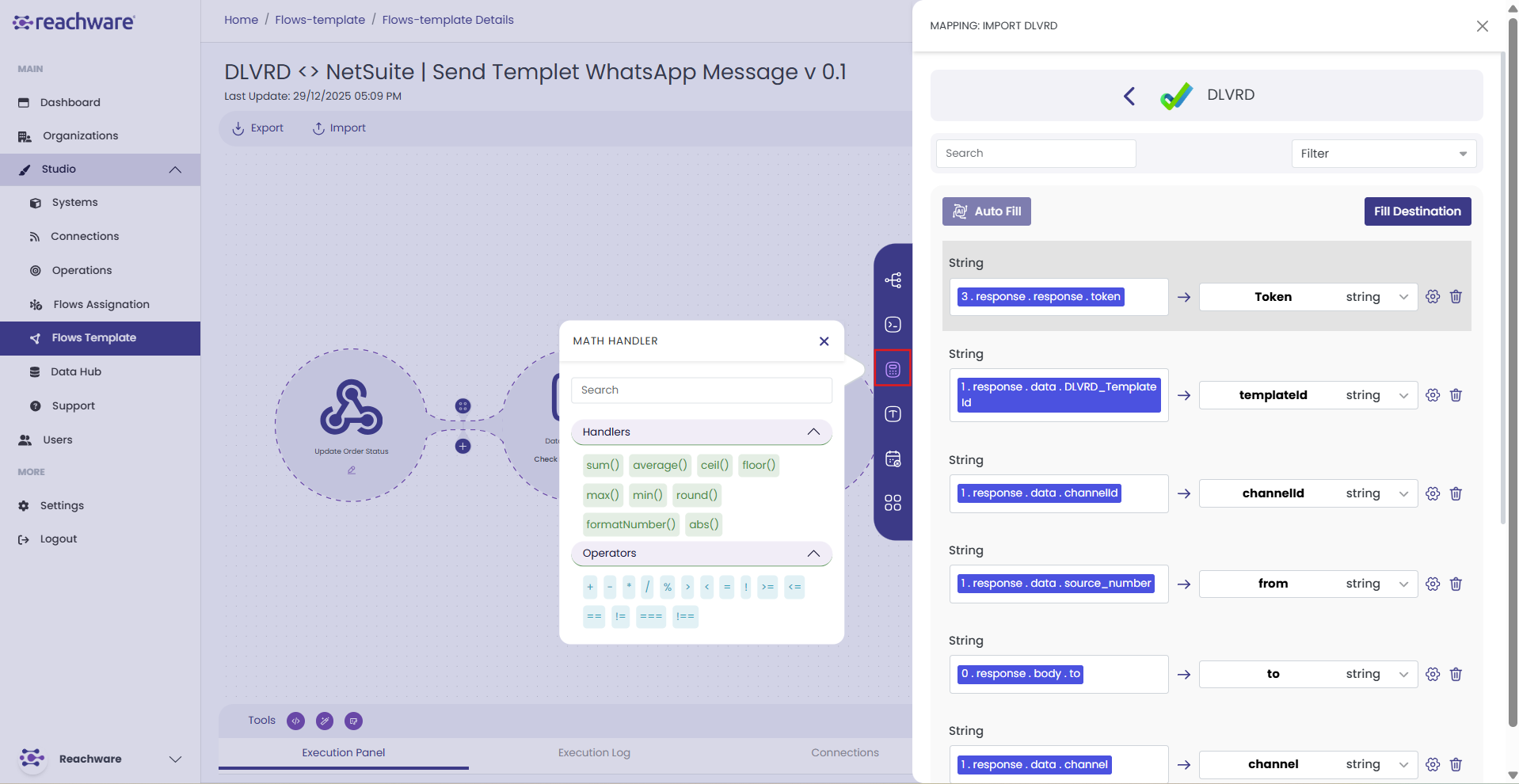

Click on any destination field in the mapping panel

A pop-up window opens titled "MATH HANDLER"

You'll see two sections:

Handlers — Available math functions
Operators — Mathematical operators (+, -, *, /, %, <, >, etc.)

Available Math Handlers

sum()

sum([array of values])

Returns the total sum of all numeric values provided.

Example

sum([10, 20, 30, 40]) = 100

average()

average([array of values])

Returns the average value of numeric values in an array.

Example

average([10, 20, 30, 40]) = 25

ceil()

ceil(number)

Returns the smallest integer greater than or equal to the specified number (rounds up).

Example

ceil(4.3) = 5

floor()

floor(number)

Returns the largest integer less than or equal to the specified number (rounds down).

Example

floor(4.7) = 4

round()

round(number)

Rounds a number to the nearest integer. If the fractional part is 0.5 or greater, it rounds up; otherwise, it rounds down.

Example

round(3.7) = 4
round(3.2) = 3

max()

max([array of values])

Returns the largest value among the provided numbers or within an array.

Example

max(4, 6) = 6

min()

min([array of values])

Returns the smallest value among the provided numbers or within an array.

Example

min(3, 2) = 2

formatNumber()

formatNumber(number; decimalPlaces; thousandSeparator; decimalSeparator)

Converts a numeric value into a string, formatted according to specified rules.

Example

formatNumber(123456789; 3; ,; .)
= 123,456,789.000

abs()

abs(number)

Returns the absolute (positive) value of a number.

Example

abs(-3.7) = 3.7

Operators

Arithmetic Operators

Operator	Description	Example
+	Addition	2 + 3 = 5 "Hello" + " World" = "Hello World"
-	Subtraction	7 - 4 = 3
*	Multiplication	4 * 5 = 20
/	Division	10 / 2 = 5

Comparison Operators

Operator	Description	Example
<	Less than	3 < 5 = true
>	Greater than	6 > 2 = true
<=	Less than or equal	4 <= 4 = true
>=	Greater than or equal	5 >= 3 = true
==	Equal (with type conversion)	5 == "5" = true
===	Strictly equal (no type conversion)	5 === "5" = false
!=	Not equal (with type conversion)	5 != "6" = true
!==	Strictly not equal	5 !== "5" = true
