Iterator splits arrays into individual items, allowing you to process each one separately. Essential when you receive multiple records and need to handle each individually.
How to Add an Iterator
1

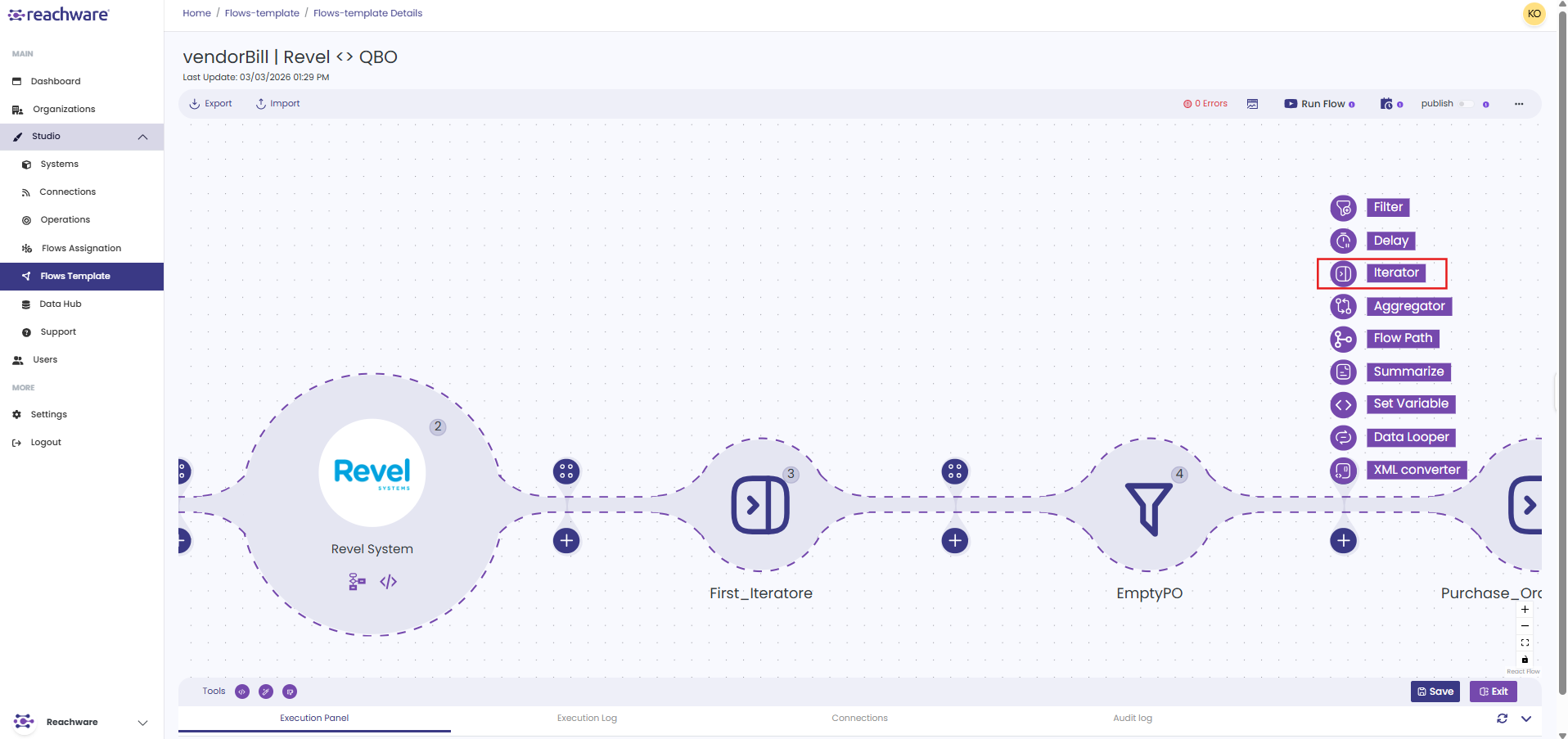

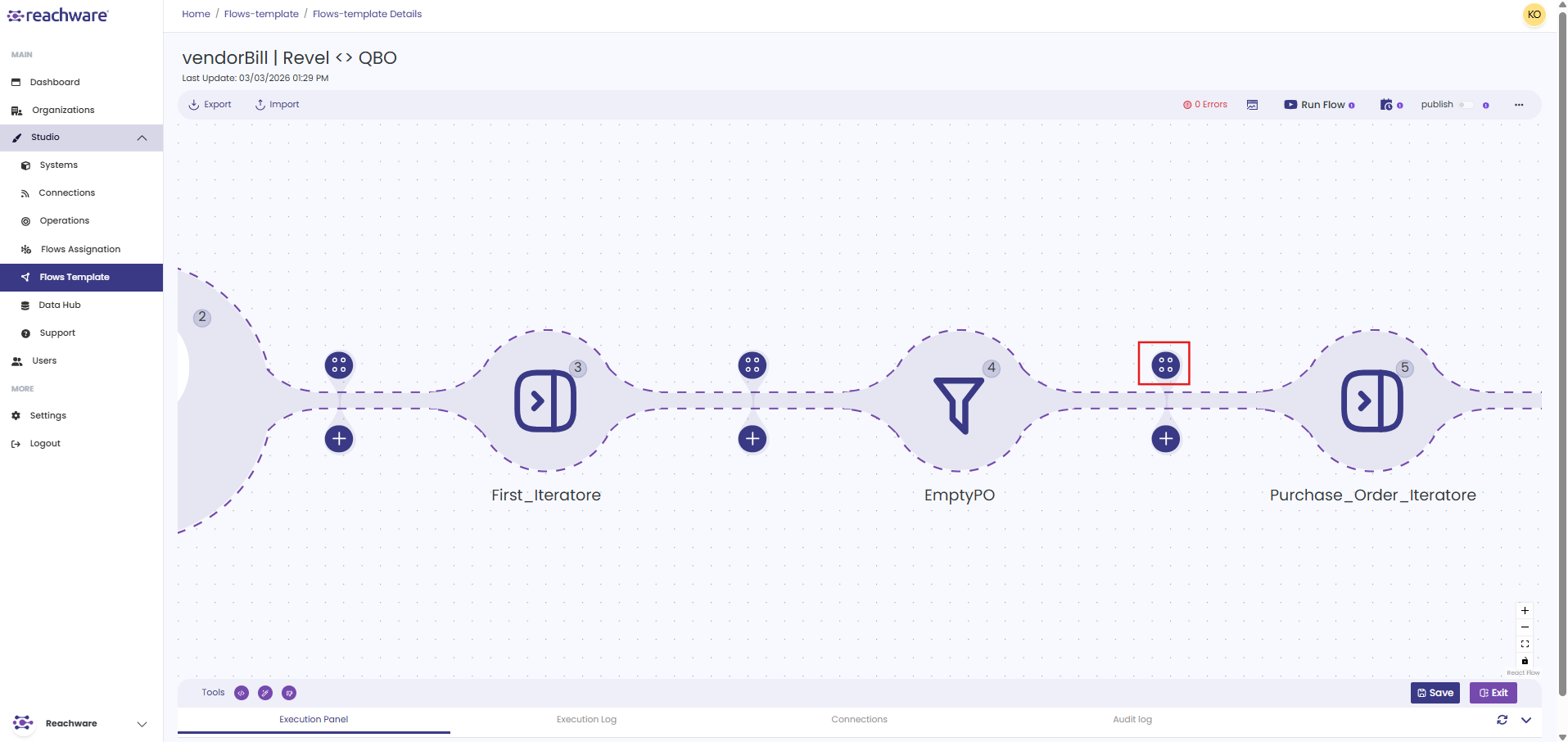

Click the Logic Processor icon between operations
2
Select Iterator
3

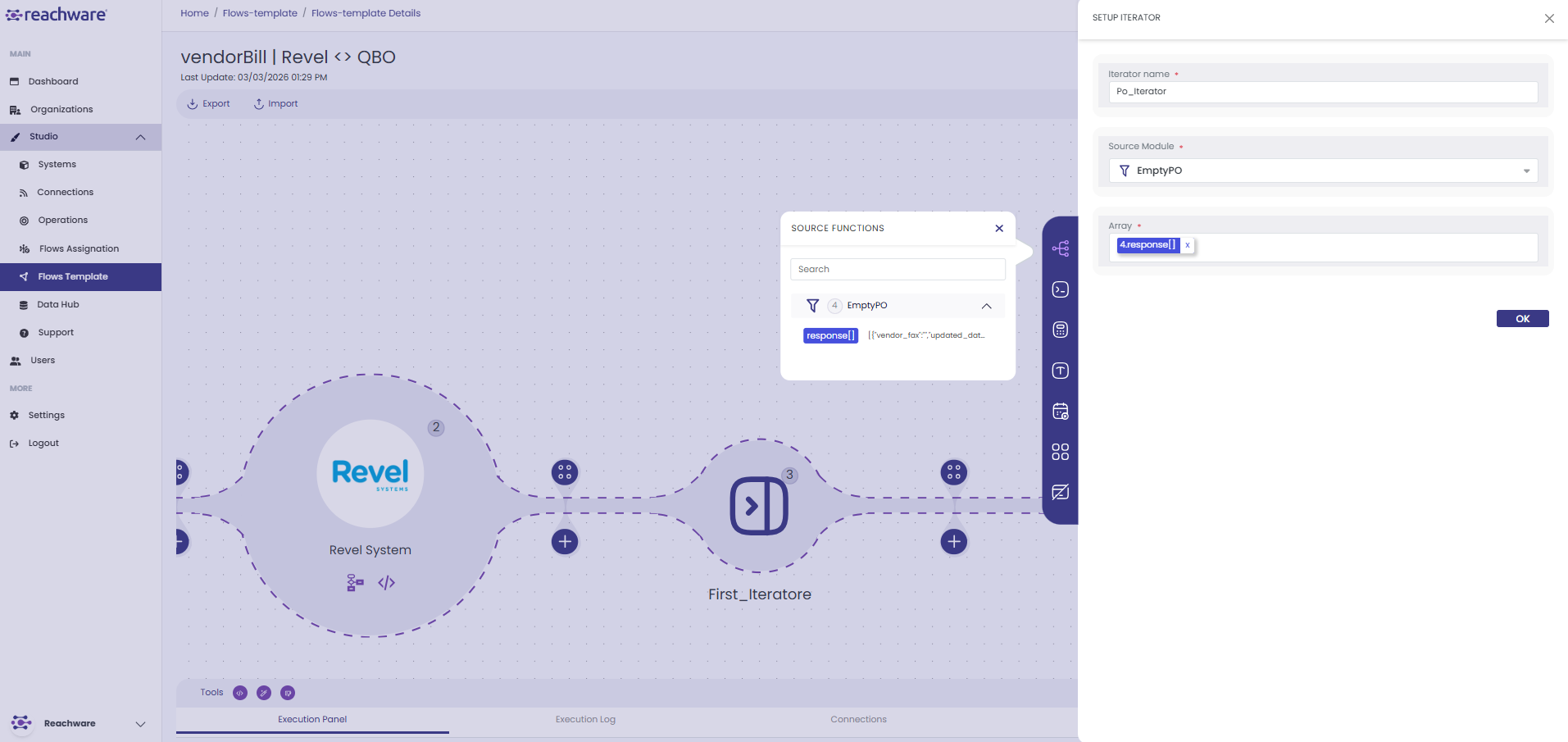

Configure settings
4
Click OK. The iterator has been created successfully.
Configuration
| Field | Description |
|---|---|
| Iterator Name | Name for this step |
| Source Module | Operation with the array data |
| Array | Specific array field to loop through |

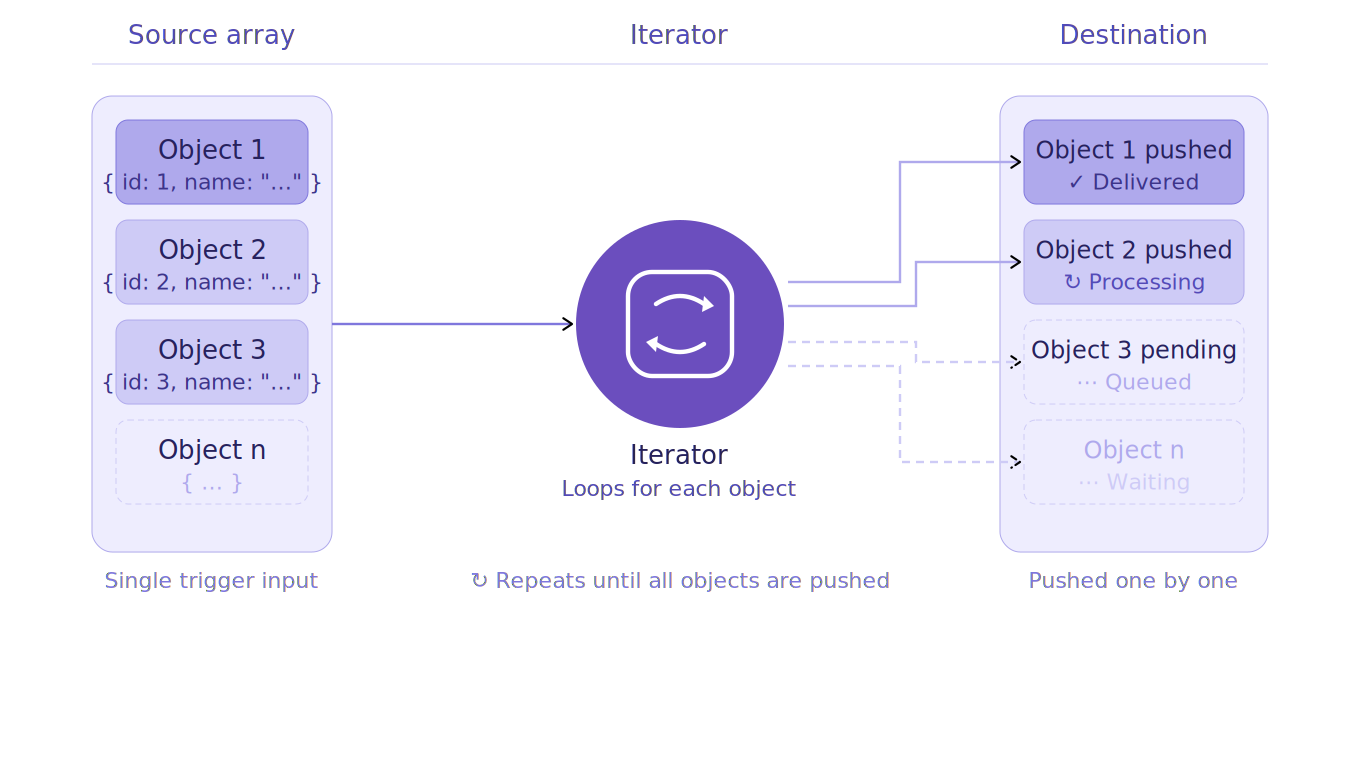

How It Works
Before Iterator
Single object with array:
{
"items": [
{"product": "Laptop", "price": 1000},
{"product": "Mouse", "price": 25},
{"product": "Keyboard", "price": 75}
]
}
"items": [
{"product": "Laptop", "price": 1000},
{"product": "Mouse", "price": 25},
{"product": "Keyboard", "price": 75}
]
}
After Iterator
Three separate objects:
Loop 1:
{"product": "Laptop", "price": 1000}
Loop 2:
{"product": "Mouse", "price": 25}
Loop 3:
{"product": "Keyboard", "price": 75}
Each object processes individually through next steps.
