Aggregator combines multiple items from an Iterator into a single structured output.

What is Aggregator?

The Aggregator collects data and combines it:

Receives multiple items from Iterator
Combines them into one
Outputs as array

[Item 1, Item 2]→Process Items
→Aggregator
→[Combined Array]

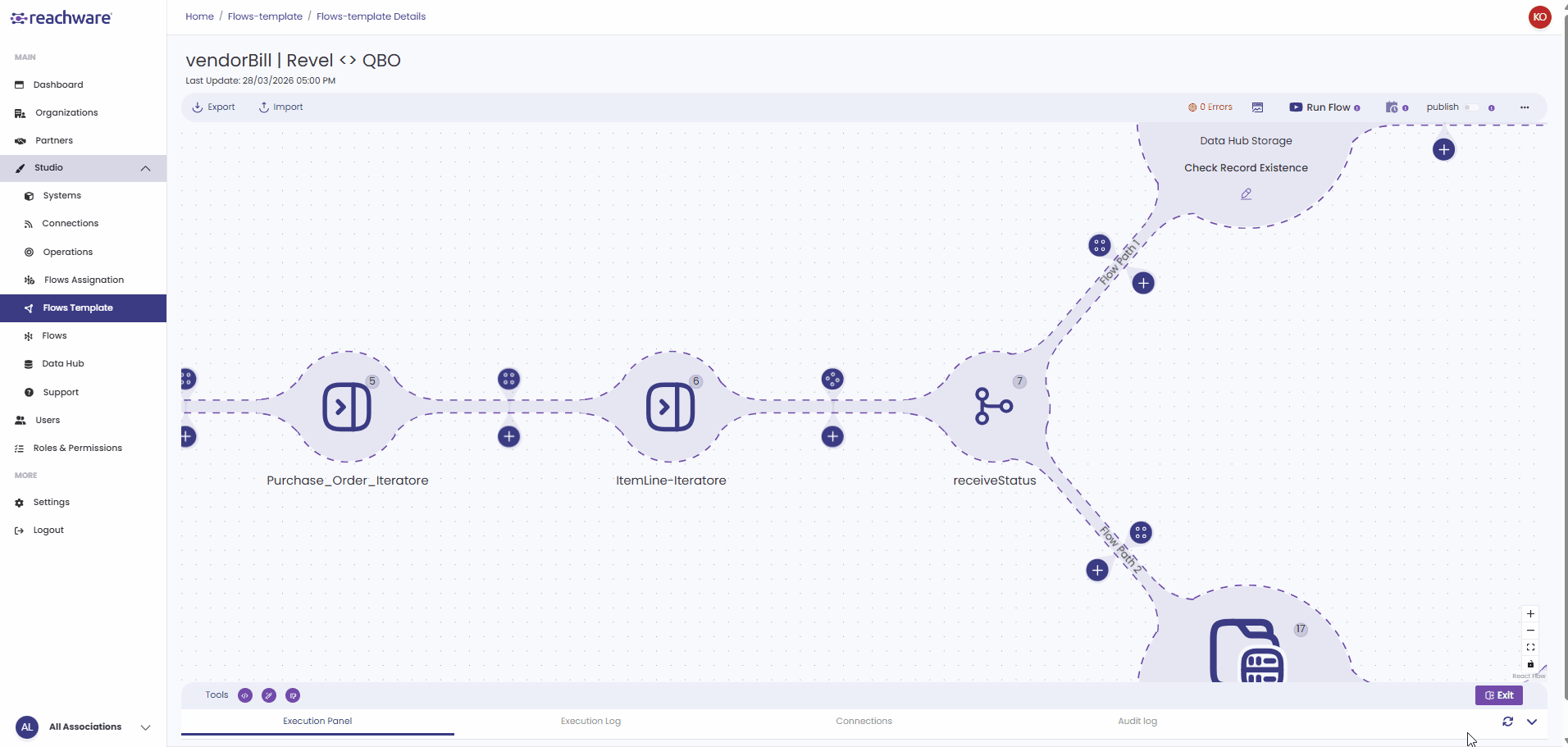

How to Add an Aggregator

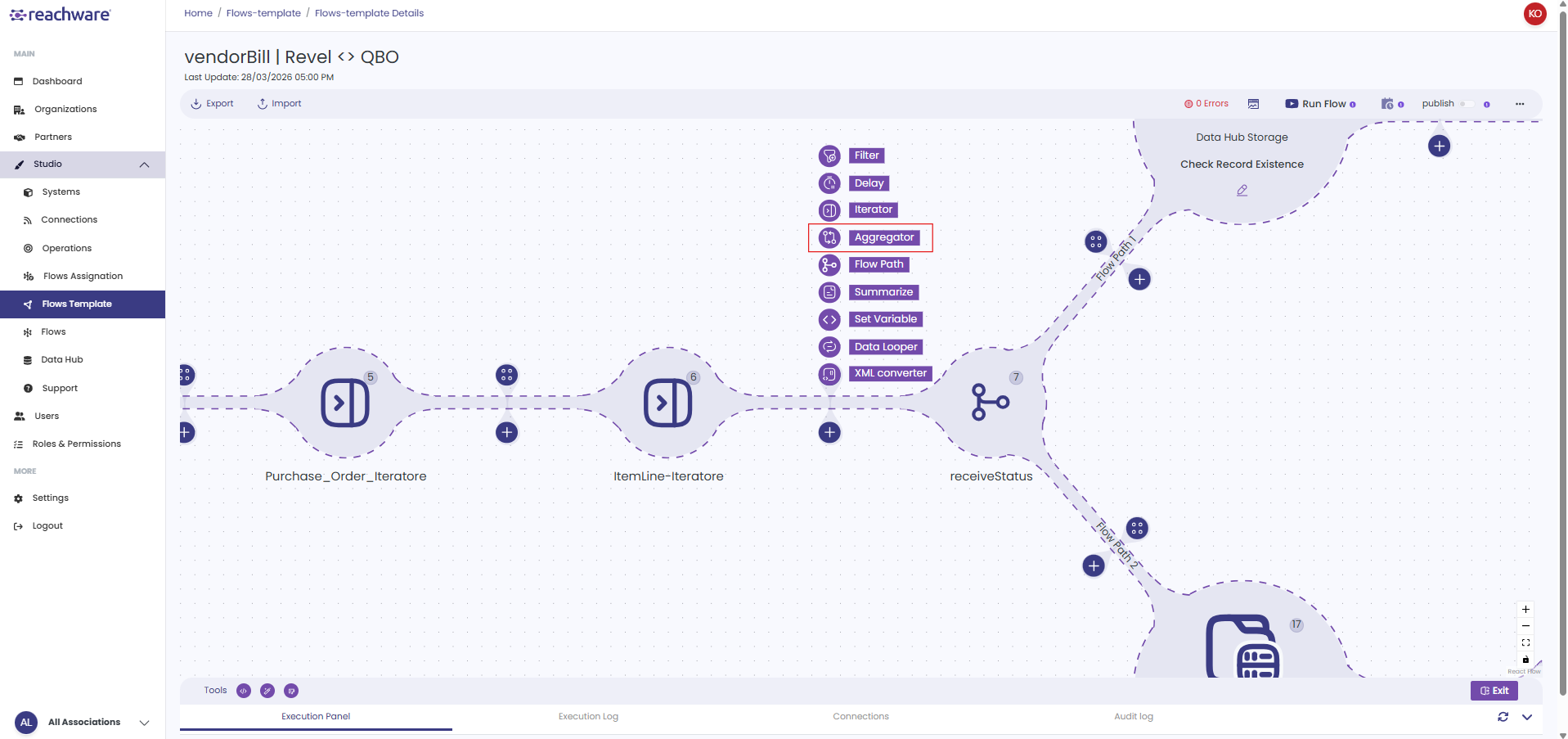

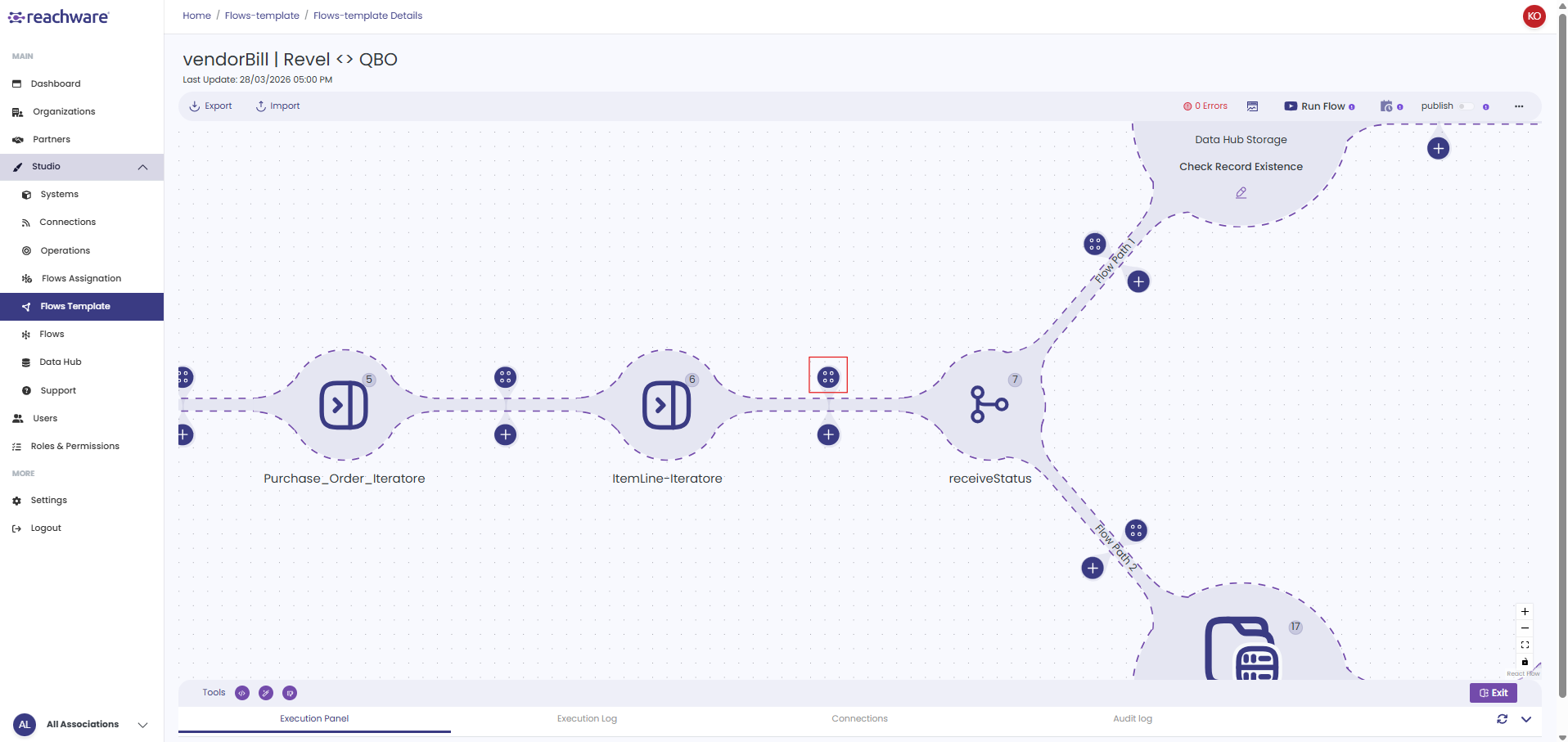

Click the Logic Processor icon after your Iterator steps.

Select Aggregator from the list.

Configure settings.

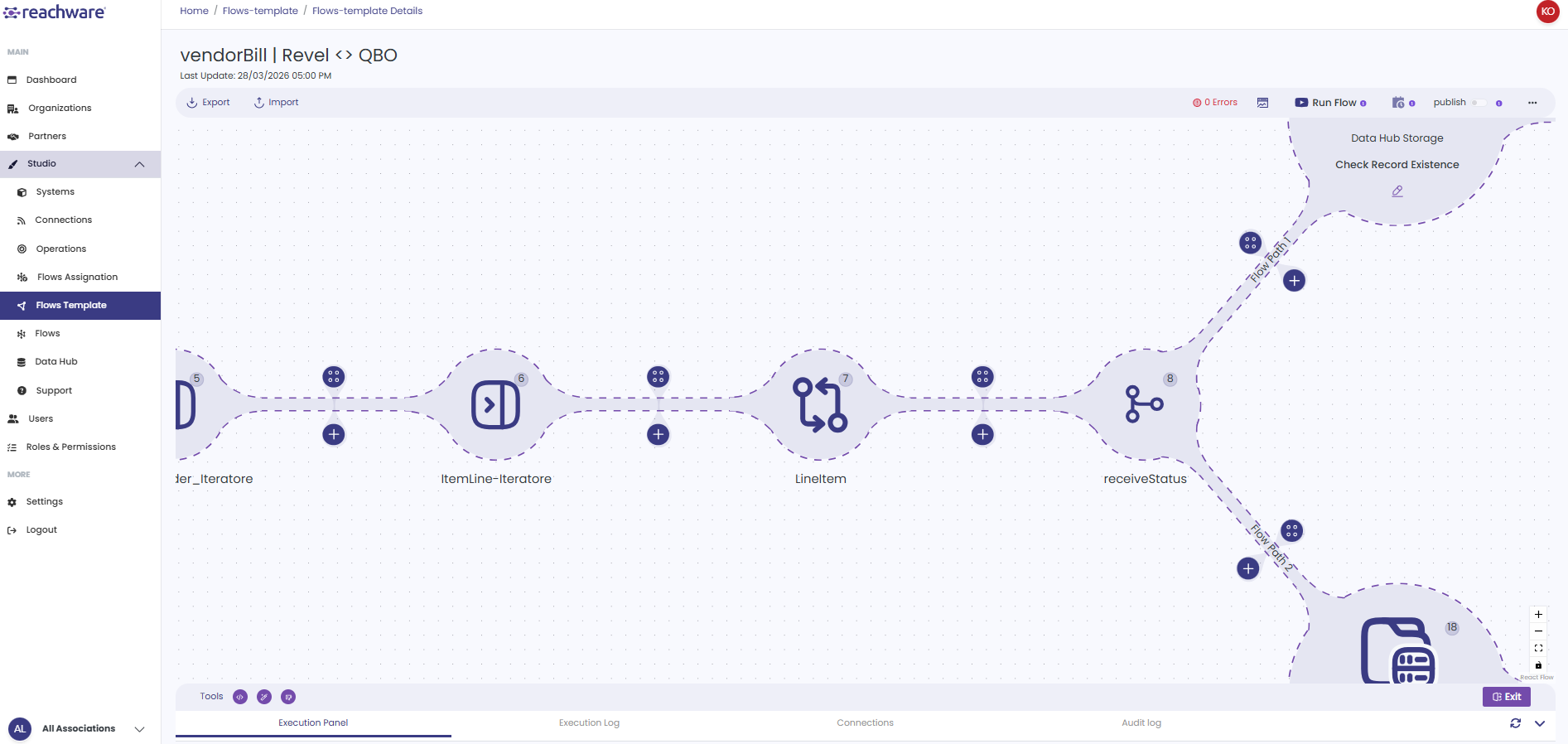

Click Save.

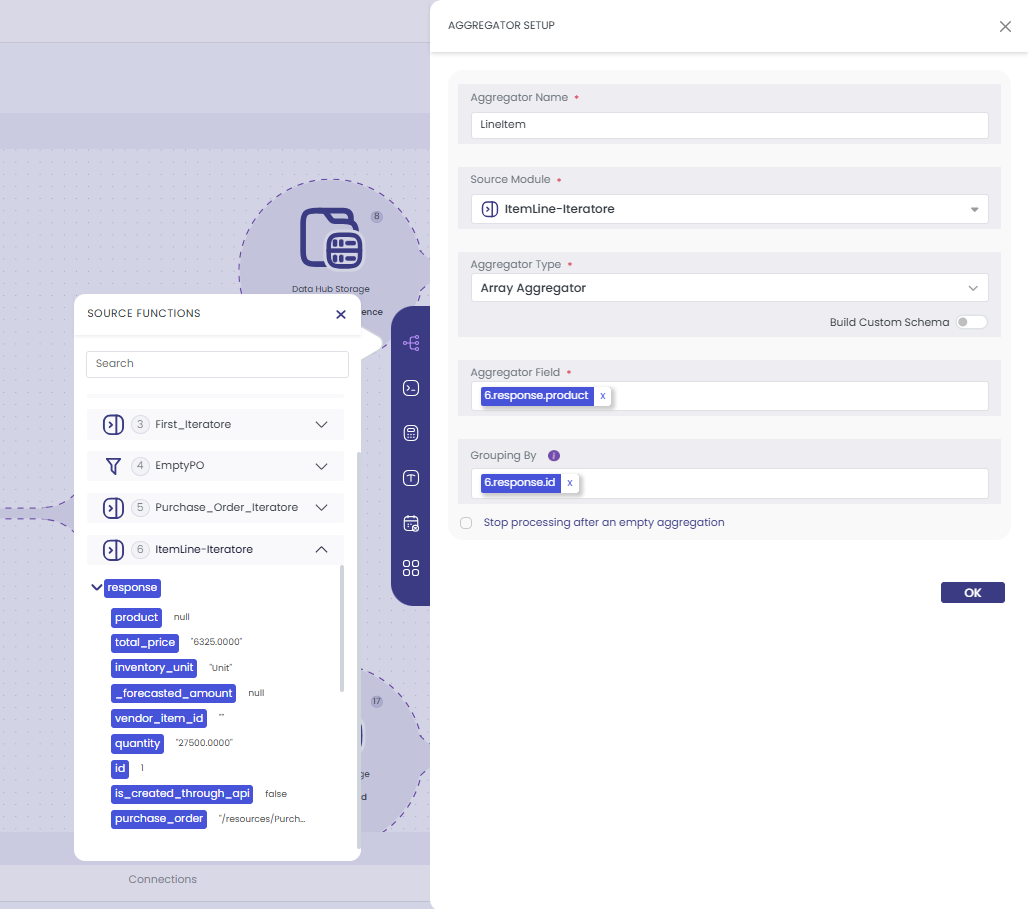

Configuration

Basic Settings

Field	Description
Aggregator Name	Name for this aggregator
Source Module	Where data comes from (usually Iterator)
Aggregator Type	Array or JSON

Aggregator Types

Type	Output
Array Aggregator	Outputs standard array format: `[...]`
JSON Aggregator	Outputs JSON string

Array Aggregator: Two Modes

Simple Mode

Quick setup for basic arrays. (Build Custom Schema: OFF)

Array Type: Select type (String, Integer, Object, etc.).
Value: Enter key from the prev steps to aggregate (e.g., {{quantity}}).

Single Field Trace

Input 1

Input 2

Input 3

Output

[10,20,30]

Optional Features:

Grouping

Grouping By field organizes data into groups.

Leave empty: All items in one array
Enter key: Group by that field (e.g., {{branch}})

Example: Grouping By: {{branch}}

Output:
{
"Riyadh": [items from Riyadh],
"Jeddah": [items from Jeddah]
}

Stop on Empty

Checkbox: Stop processing after an empty aggregation.

Enable to stop flow if no data is aggregated

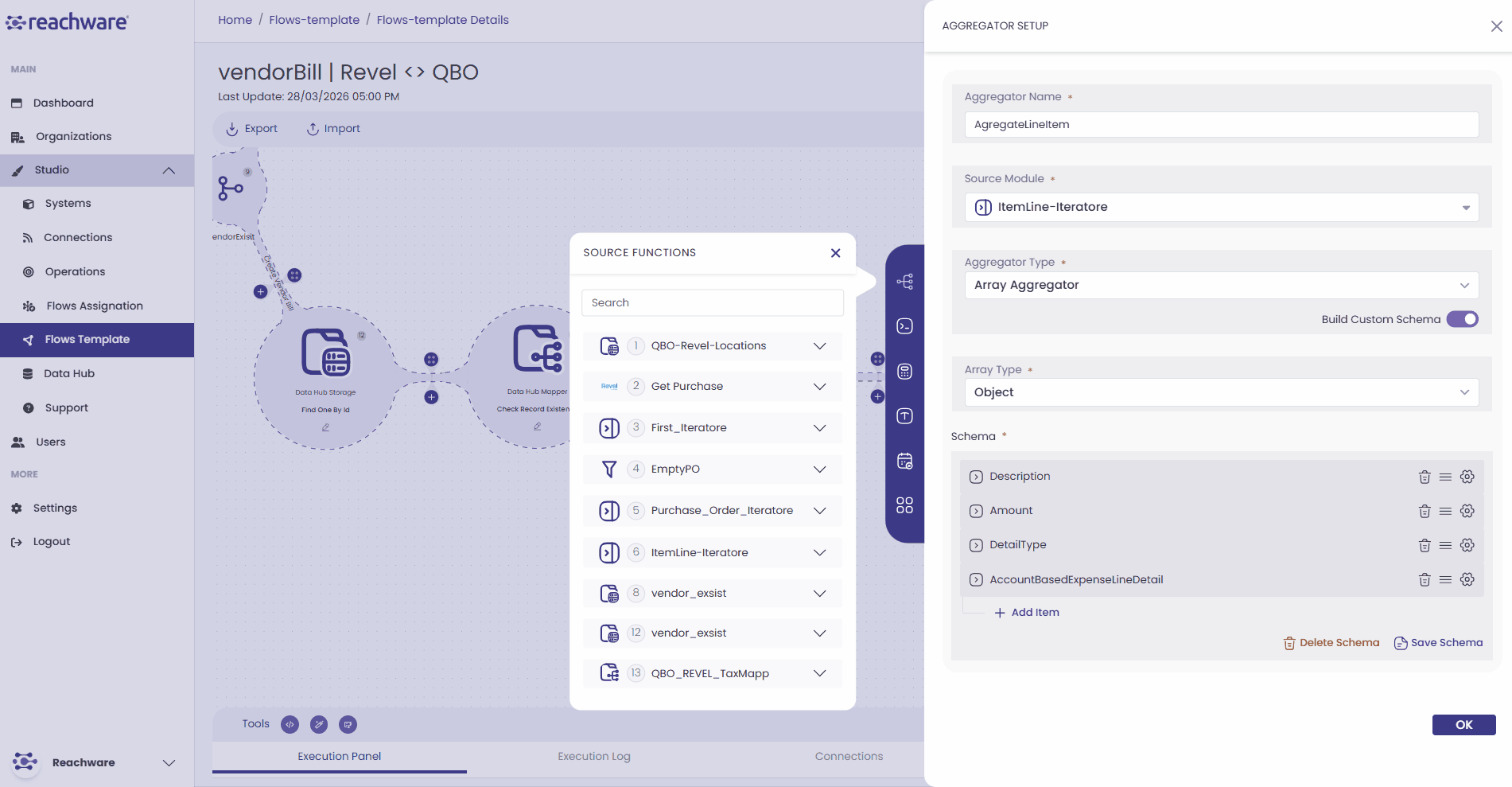

Advanced Mode (Schema Builder)

For complex objects with multiple fields. (Build Custom Schema: ON)

Toggle Build Custom Schema ON to open Schema Builder and build a custom structured schema.

Step 1

Click + Add Item

Step 2

Enter Name

Step 3

Select Type (String, Integer, Object)

Mapping Data

Mapping Data means assigning values to destination fields either dynamically (from source data) or statically (manual input). While creating or building a custom schema, the user can define the settings of each key field, including how it handles values such as empty or missing data.

For more details, go to Mapping →

Nested Objects

For nested structures:

Add item and set Type to Object
Click to expand
Add sub-items inside
