Set Variable

Set Variable allows you to create and store values in your flow for reuse in later steps. It's useful for storing calculations, transformations, or intermediate results.

Use Set Variable to:

  • Store calculation results
  • Save transformed data
  • Create reusable values
  • Build complex data structures
  • Preserve values across flow executions

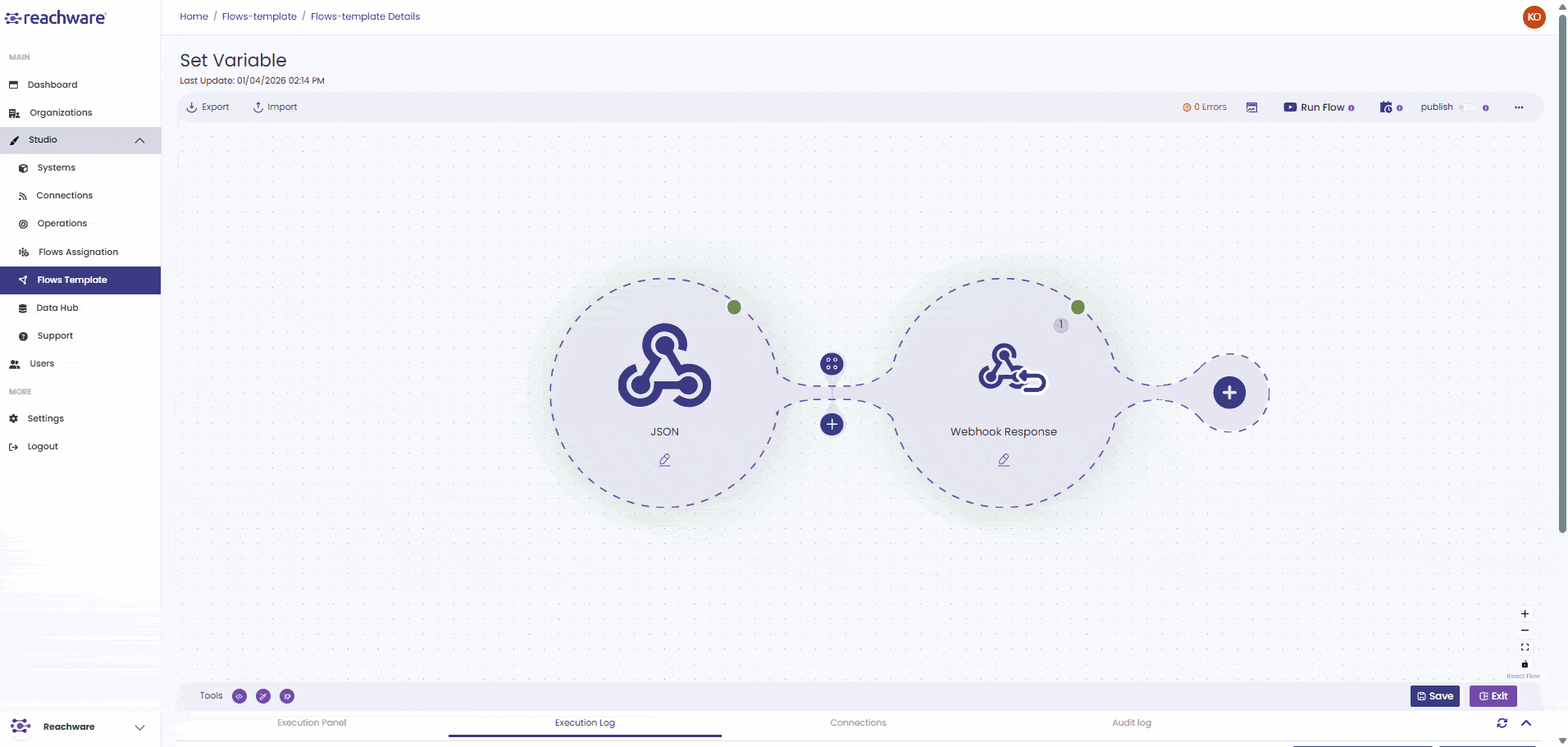

How to Add Set Variable?

1

Click the Logic Processor icon between operations

2

Select Set Variable

3

Configure settings

4

Click Save

Configuration

FieldDescriptionRequired
Variable NameName of the variableYes
Variable ValueValue to storeYes

Variable Naming Rules

✓ Must start with:

  • Letter (A-Z, a-z)
  • Underscore (_)

✕ Cannot:

  • Start with a number
  • Contain spaces
  • Include special characters (@, -, #, etc.)

Valid Examples:

customer_total
totalPrice
_tempValue
order123

Invalid Examples:

1value        → Starts with number
total-price   → Contains hyphen

Variable Value

You can set the value to:

  • Mapped data from previous steps
  • Hardcoded values (text, numbers, objects)
  • Handler results (calculations, transformations)
  • Arrays or objects

Using Handlers in Set Variable

You can use handlers in variables to create values.

Example: Calculate total

Variable Name: order_total
Variable Value: sum({{items[].price}})
